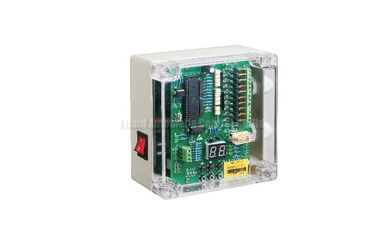

DC 24V Pulse Jet Valve Off-line Controller 1s - 30s Pulse Interval

DC 24V Pulse Jet Valve Off-line Controller 1s - 30s Pulse Interval

DC 24V Pulse Jet Valve Off-line Controller 1s - 30s Pulse Interval

جزئیات محصول:

Place of Origin: Ningbo China(Mainland)
نام تجاری: FLUIDAC or OEM
گواهی: ISO9001
Model Number: DMK-3CS-12

پرداخت:

Minimum Order Quantity: 5 piece
قیمت: USD20--
Packaging Details: Boxes, Cartons,Wooden cases,Pallets
Delivery Time: Within 20 days after receiving payment or deposit
Payment Terms: TT Advance/30% deposit,70% by copy Bill oflading,Western Union,MoneyGram,Paypal
Supply Ability: 10000 Pieces Per month
اکنون تماس بگیرید
توضیحات محصول جزئیات
Output Pulse Interval: 1~30Sec Output Pulse Width: 0.03~0.2Sec
Product name: Pulse Jet Valve Off-line Controller Rated Output Current: 1A
Outline Dimension: 160mmx160mmx96mm Application: pulse jet valve
برجسته:

Solenoid Pulse Valve

,

Remote Control Pulse Jet Valve



DC 24V Pulse Jet Valve Off-line Controller 1 - 30s Pulse Interval

DMK blow controller,DML off-line controller for Pulse jet valve,input voltage AC220V,output voltage DC24V,1~30Sec output pulse interval adjustable e.g DMK-3CS-12





Quick Detail:



* DMK blow controller,DML off-line controller for pulse jet valve

* Controller allows voltage from AC100~240V fluctuations

* multi-level power purification and digital filtering software

* Strong anti-interference ability

* Adopted chip technology,software strong support,realize the intelligence of theory and principles

* Delicate and transparent style PC shell,novelty appearance,good sealing,outstanding dust-proof

DC 24V Pulse Jet Valve Off-line Controller 1s - 30s Pulse Interval

Specifications:



ORDERING CODE

DMK

3

C

S

12

DMK:Blow controller

Design Series

Integrate circus

Interval control

Fixed Output Numbers

DML:Off-line controller



Model No

Outline Dimension

DMK-3CS-12

160mmx160mmx96mm

DMK-3CS-40

260mmx185mmx96mm

DMK-3CS-56

328mmx218mmx100mm

DML-3CS-20

260mmx185mmx96mm



Rated   Input   Voltage

Rated Output Voltage

Rated  Output  Current

Power Consumption

AC220V(1±10%)

60HZ

DC24V Or other voltage

1A

8W

(Pulse width and

interval are within rated range)

Adjustable Range of

Output Pulse Interval

Adjustable Range of

Output Pulse Width

Input Signal  of

Pressure Differential

1~30Sec

0.03~0.2Sec

Switch contact

Adjustable Range of

Output Pulse Interval

Working Environment

1~12,1-40,1-64

(Optional)

–25℃~+55℃,The  relative humidity should be no more than  85%,

No serious corrosive gas or conducting dust,

No violent shock or impact



Pulse controller,pulse digital controller,blow controller
